Diamond Core Drilling
»
Diamond Core Drill Machine
Diamond Core Drill Machine

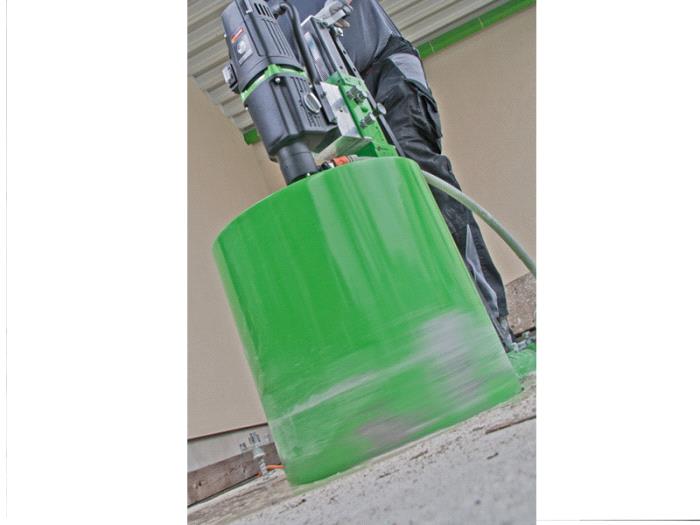

PLE 450 B
The robust, powerful unit for drillings up to Ø 450 mm
Specifications
Use
Features
Scope Of Delivery
Wet drilling in reinforced concrete, natural stone and asphalt
Drilling operations, civil engineering
Powerful 3300 W heavy-duty motor with high power reserves and a long lifetime
Full aluminium housing – durable and resistant
Electronic – soft start, over current cut-off, overload indication
3-speed oil bath gearbox – for optimal lubrication in all working positions due to the specially developed oil pump and optimal adjusted torque-speed-ratio for all diameters
Mechanical safety clutch
PUR-construction site cable – strong for heavy duty use
Universal tool holder – fasten the motor to the drill rig without any tools
Integrated levels on the carriage and scale on the drill rig – exact drilling
Column swivel in three levels (75°/60°/45°)
Steel column – robust, stable, buckling resistant
Tooth rail separately exchangeable – easy to maintain
Compact base with cut-out for quick action bracing unit
Feed lever change without any tools – easy change of the working site
Removeable wheel axle – easy transport
Rated Voltage (V) : 230
Power Input (W) : 3,300
Drilling Diameter (mm) : 71 - 450
Spindle Connection : 1 1/4” UNC
Stroke (mm) : 620
Column length (mm) : 960
Rated Speed (rpm) : 180 / 400 / 780
No-load Speed (rpm) : 300 / 650 /1,300
Weight (Kg) : 35.8
Spanner
Service Sheet
User Manual
Downloads :
PLE 450 B Product Sheet
