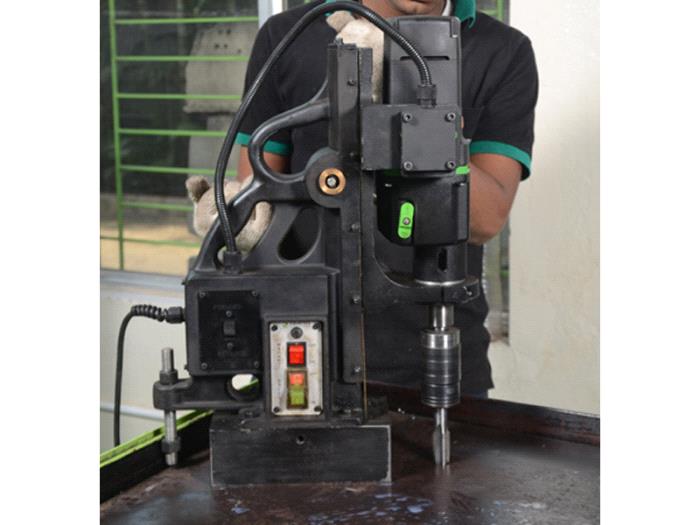

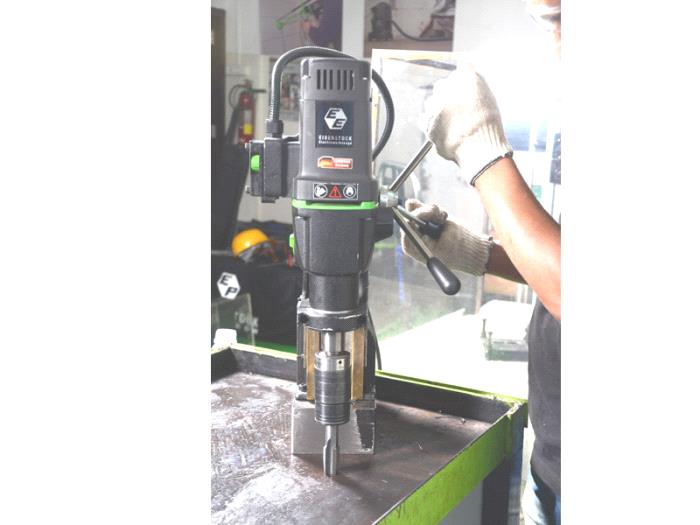

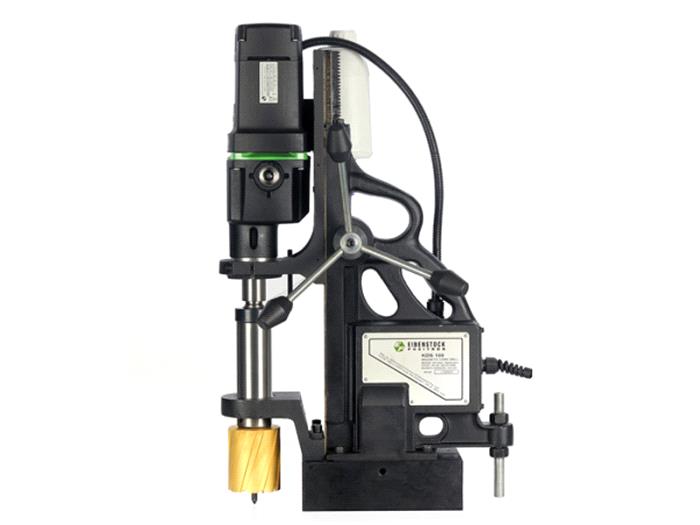

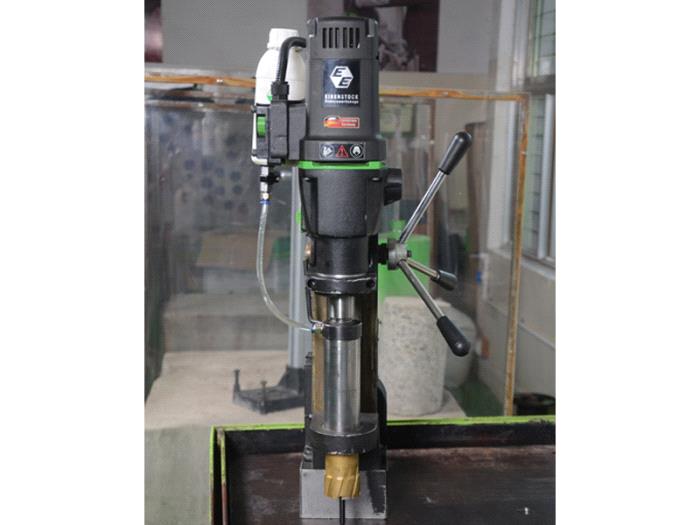

Magnetic Core Drilling Machine

KDS 100

The super flexible Magnetic core drill machine with 2 speed mechanical gear box and electronic speed control (60-140/200-470 rpm) delivering 1700 Watt power has a MK3 Spindle to give user capability to drill from 12mm- 100 mm in 100 mm depth variety of materials comfortably. The user can also use twist drills upto 32mm with this machine. The machine being reverse and forward, allows user to do tapping upto M24.

  • Electrical installation, sanitary and heating installations,Vehicle Construction.
  • Civil engineering, industrialised building construction & Heavy fabrication
  • Mechanical safety clutch
  • Easy feed lever Change
  • Line lockout
  • Safety Belt
  • Powerful motor
  • Superb service life
  • Powerful electromagnet
  • Epoxy sealed waterproof base
  • Internal spindle cooling system
  • Safety fuse protection for magnet
  • 100% high tensile alien headed screws
  • Unmistaken arrangement of switch for magnet & drill to ensure safety of operator
  • Soft Start and Thermal over load for the protection of the machine & user (EHB 32/2.2 R R/L)
  • Constant speed and torque control allows for precise drilling (EHB 32/2.2 R R/L)
  • Tapping attachment, Tapping Collet, Pipe Clamping Attachment & Core Bits are Optional accessory as per your requirement
  • Rated Voltage (V) : 220-240
  • Power Input (W) : 1800
  • Max Core cutting capacity (mm) :100
  • Max Core cutting Depth (mm) : 100
  • Rated Speed(RPM): 60-140/200-470
  • weight (Kg) : 36

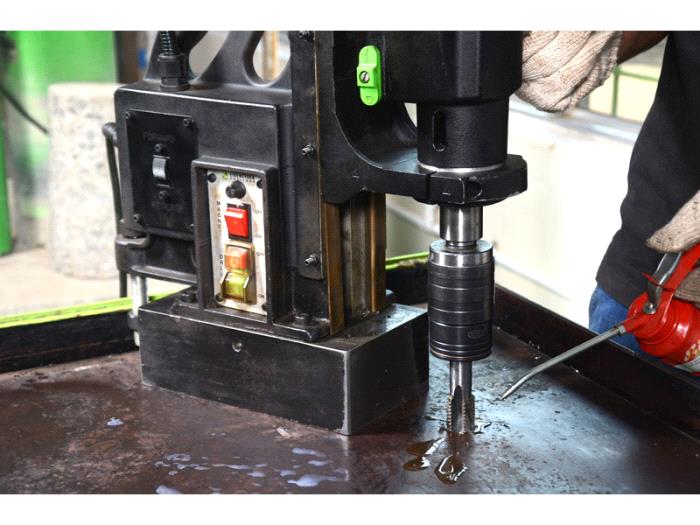

  • Tapping Capacity : up to M24 mm
  • Electro Torque control : Yes
  • Thermal Overload Protection : Yes
  • Accessory Pouch
  • Allen Key 2.5 mm
  • Allen Key 3 mm
  • Allen Key 5 mm
  • Allen Key 6 mm
  • Guide Pin Dia 8 X 155 mm L
  • Guide Pin Dia 6 X 118 mm L
  • Guide Pin Dia 7.98 X 118 mm L
  • MT3 Sleevle SA 19 mm
  • MT3 Tapping Chuck
  • Extension Pin
  • Hex Spanner 5 mm
  • Fuse 15 amp
  • SH Grub Screw M 10X8
  • SH Grub Screw M 12X8
  • 50 X 50 mm TCT Annular Cutter
  • Drift
  • Coolant Bottle
  • Cutting Oil Bottle
  • Hand Gloves Set
  • Safety Goggles
  • Belt SA
  • Service Sheet
  • User Manual
  • Metal Carry Case
