Sawing / Cutting / Slitting
»
Wall Chaser
Wall Chaser
EMF 150.1
The powerful wall chaser up to 45 mm milling depth
Specifications
Use
Features
Scope Of Delivery

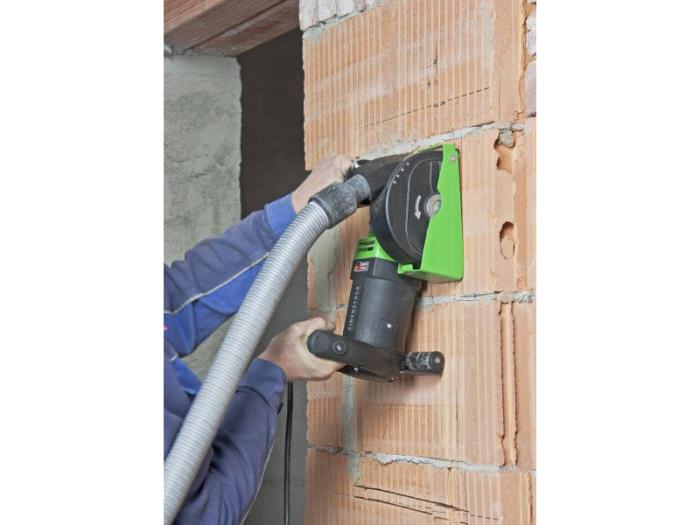

Milling of slots and ducts in concrete, sand-lime brick,brickwork
Electrical installations
Powerful 2,300 W motor
Electronic - soft start, temperature and over current cut-off, optical overload indication
Parallel handle position - comfortable working position
Locking for suction hose - avoids unintentional loosening of the hose during milling

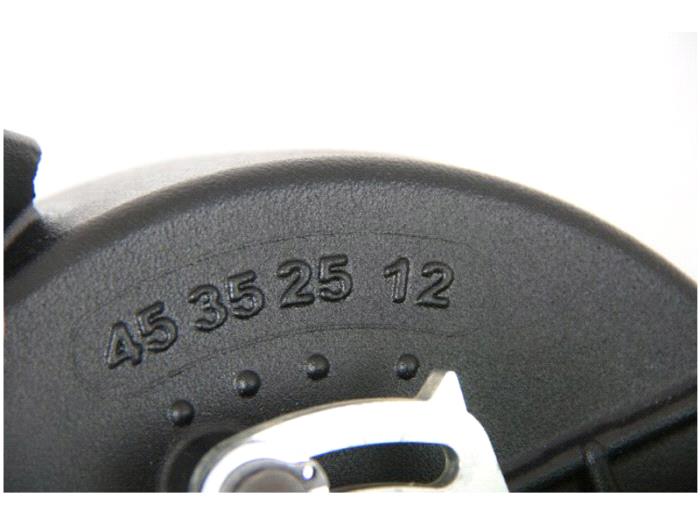

Adjustable milling depth - without the need for a tool
Spindle lock - easy blade change
Slim design, small distance between dust hood and diamond blades for working up to 15 mm from the edge

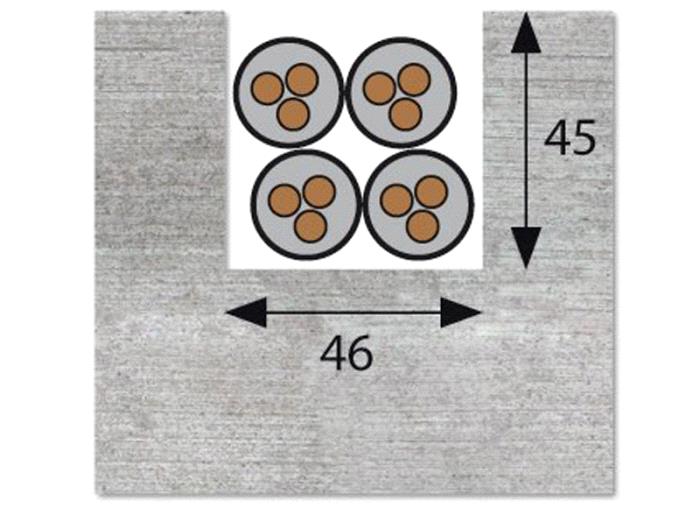

Slot widths of 7-46 mm adjustable in 1 mm steps
Closed hood - optimal air flow, easy removal of fragments
Machine works in cutting direction - allows a comfortable handling

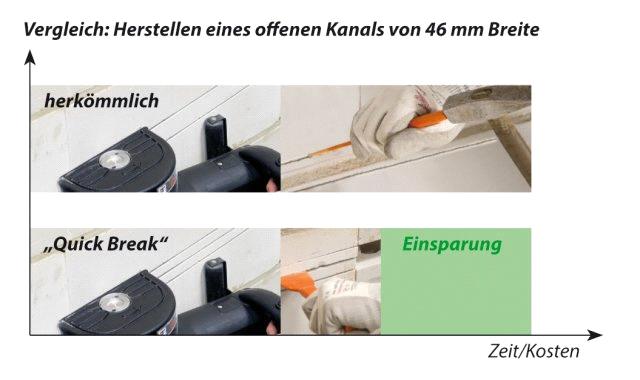

EIBENSTOCK "Easy Break Out" - Fast breaking by a center slot - Distance disks for the using of 3 blades (accessory)
Nozzle diameter Ø 35 mm - connection to the DSS industrial vacuum cleaner serie
Rated Voltage (V) : 230
Power Input (W) : 2,300
Max. Slot Depth (mm) : 45
Max. Slot Width (mm) : 46
Disc Diameter (mm) : 150
Spindle Connection (mm) : 22.2
Rated Speed (rpm) : 4,300
No-load Speed (rpm) : 7,500
Weight (kg): 6.1
Two Diamond Blades Premium (concrete)
Assembly Tools
User Manual
Downloads :
EMF 150.1 Brochure
EMF 150.1 Product Sheet
EMF 150.1 User-Manual
