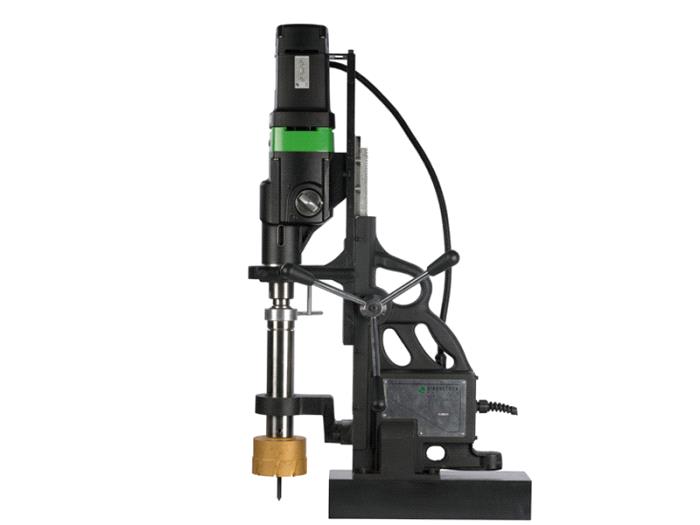

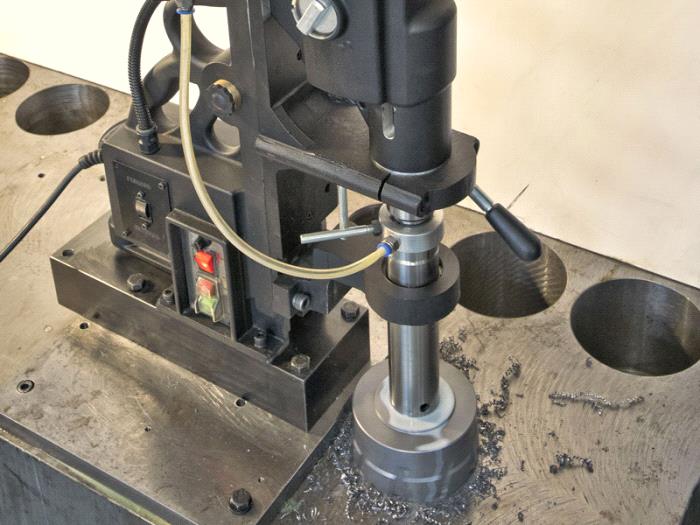

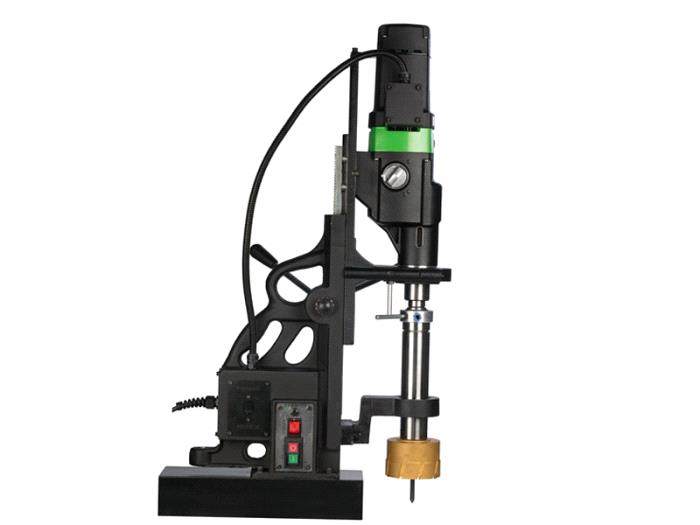

Magnetic Core Drilling Machine

KBM 130.1

This Magnetic core drill machine remains one of the most powerful machines in the entire world for its unmatched capability to drill in steel from 12mm – 130 mm diameter in upto 110 mm steel. With MK4 spindle and 4 speed mechanical and electronic speed control motor (30-85/50-135/130-390/210-620 rpm) this machine can do extreme jobs look simple. The machine being reverse and forward, allows user to do tapping upto M42 which is truly exceptional performance.

  • Electrical installation, sanitary and heating installations,Vehicle Construction.
  • Civil engineering, industrialised building construction & Heavy fabrication
  • Mechanical safety clutch
  • Easy feed lever change
  • Line lockout
  • Safety Belt
  • Powerful motor
  • Superb service life
  • Powerful electromagnet
  • Internal cable arrangement
  • Epoxy sealed waterproof base
  • Internal spindle cooling system
  • Safety fuse protection for magnet
  • 100% high tensile alien headed screws
  • Unmistaken arrangement of switch for magnet & drill to ensure safety of operator
  • Core Bits - Optional accessory as per your requirement
  • Soft start and thermal over load for the protection of the machine & user (EHB 130/2.2 R R/L)
  • Constant speed and torque control allows for precise drilling (EHB 130/2.2 R R/L)
  • Tapping attachment, Tapping Collet, & Core Bits are Optional accessory as per your requirement
  • Rated Voltage (V) : 220-240
  • Power Input (W) : 2300
  • Core Drill Short Cutting Capacity 30 mm: 12 to 130 mm
  • Core Drill Long Cutting Capacity 55 mm: 12 to 100 mm
  • Core Drill Extra long Cutting Capacity 110 mm: 20 to 120 mm
  • Max Core cutting Depth (mm) : 110
  • Rated Speed (RPM) : 30 to 85 min - 1 /50 to 135 min - 1 /130 to 390 min - 1 /210 to 620 min - 1
  • Weight (kg) : 50
  • Tapping Capacity : up to M42 mm
  • Electro Torque control : Yes
  • Thermal Overload Protection : Yes
  • Twist drilling : Capacity (Max) : 45mm
  • Reaming (Max) : 50mm
  • Morse taper : MT 4
  • Direct arbor : 32 mm Weldon
  • Accessory Pouch
  • Allen Key 2.5 mm
  • Allen Key 3 mm
  • Allen Key 5 mm
  • Allen Key 6 mm
  • Guide Pin 8 x 198 mm L
  • Guide Pin 8 x 130 mm L
  • Guide Pin 8 x 118 mm L
  • Sleevle Attachment 32 mm to 19mm
  • Hex Spanner M5
  • Fuse 15 amp
  • SH Grub Screw M 10X8
  • SH Grub Screw M 12X8
  • Drift
  • Cutting Oil Bottle
  • Coolant Bottle
  • Belt SA
  • Safety Goggle
  • Hand Gloves Set
  • Service Sheet
  • User Manual
  • Metal Carry Case
