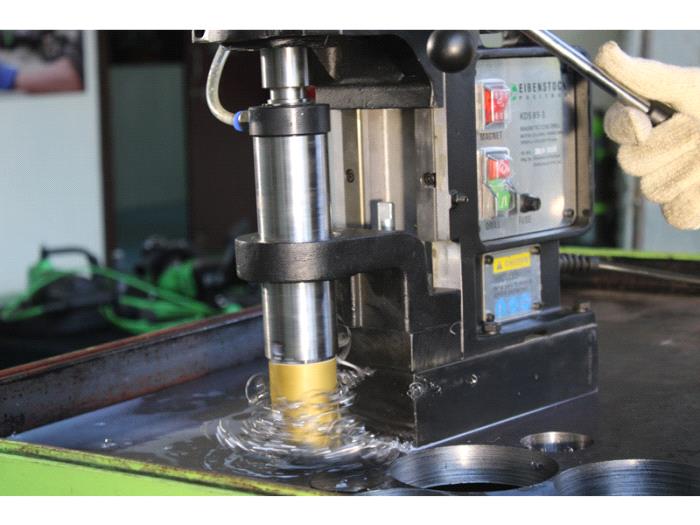

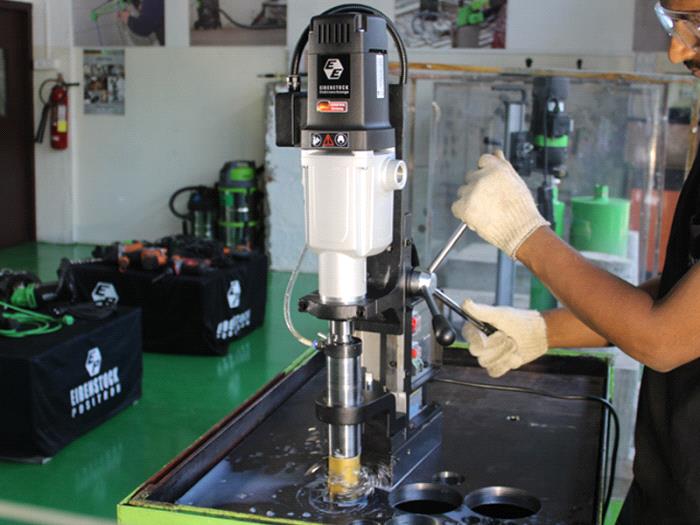

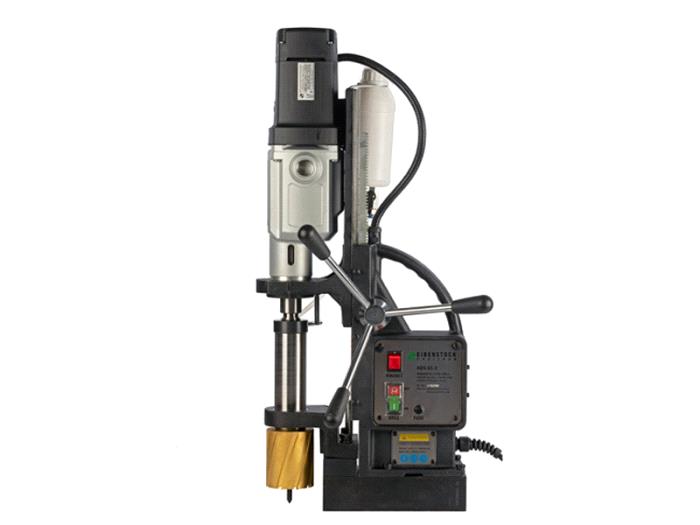

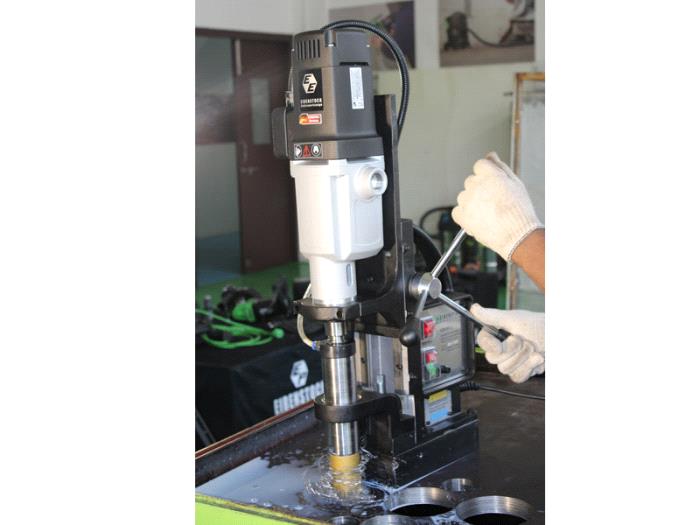

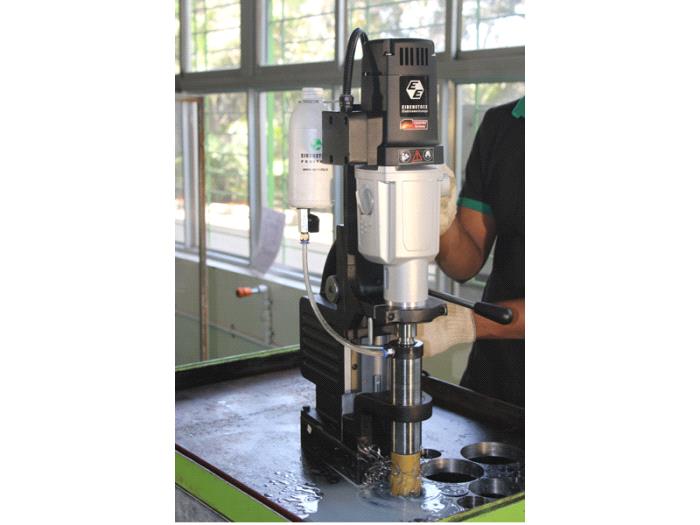

Magnetic Core Drilling Machine

KDS 85-3

The special Magnetic Core drill machine with 3 speed mechanical oil cooled gear box delivering 1700 watt power with MK3 spindle is a work horse for fabrication industry. The sites where user needs to drill many holes in a single day, every day this machine lives upto expectations of the user. It gives capability to the user to drill from 12mm- 85 mm in 75 mm depth of steel. The user can also use twist drills upto 32mm with this machine.

  • Electrical installation, sanitary and heating installations
  • Civil engineering, industrialised building construction & Heavy fabrication
  • Mechanical safety clutch
  • Feed lever change without any tools-easy change of the working site
  • Line lock out
  • Safety Belt
  • Powerful motor
  • Superb service life
  • Powerful electromagnet
  • Internal cable arrangement
  • Epoxy sealed waterproof base
  • Internal spindle cooling system
  • Safety fuse protection for magnet
  • 100% high tensile alien headed screws
  • Compact,Light weight magnetic core drill with superb ease of use vertical
  • Unmistaken arrangement of switch for magnet & drill to ensure safety of operator
  • Core Bits - Optional accessory as per your requirement
  • Rated Voltage (V) : 220-240
  • Power Input (W) : 1800
  • Max Core cutting capacity (mm) : 85
  • Max Core cutting Depth (mm) : 75
  • Rated Speed (RPM) : 110/190/280
  • Weight (kg) : 29
  • Accessory Pouch
  • Coolant Bottle
  • Cutting oil bottle
  • Guide Pin_Rel _Dia 8x155mm L
  • Guide Pin Dia.6x118
  • Guide Pin Dia 7.98x118
  • Allen Key 2.5MM
  • Allen Key 3MM
  • Allen Key 4MM
  • Allen Key 5MM
  • Allen Key 6MM
  • Hex Spanner M5
  • Goggle
  • Sleevle Attachment 32
  • SH Grub Screw M 10x8
  • SH Grub Screw M12x8
  • Drift
  • Belt SA
  • Fuse 15AMP
  • 50 X 50mm TCT Annular Cutter
  • Service Sheet
  • User Manual
  • Metal Carry Case
