Magnetic Core Drilling Machine (Piller Type)

KBM 50 P.2

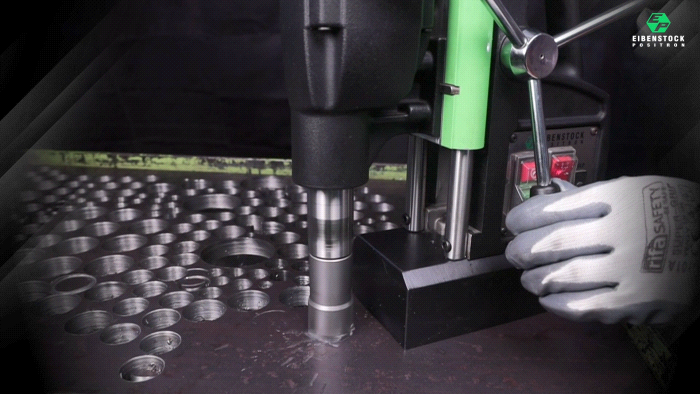

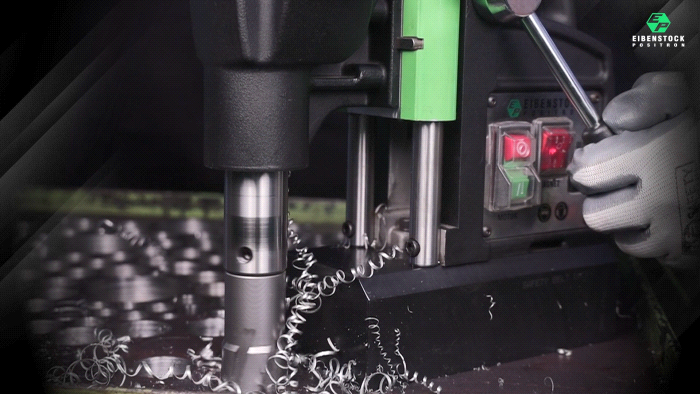

The KBM 50 P.2 is a powerhouse magnetic core drill designed to elevate your steel drilling experience. This innovative pillar-type machine delivers exceptional performance and unmatched precision, making it the perfect tool for demanding applications with its integrated 19 mm Weldon spindle, this machine is capable of cutting cores ranging from 12 mm to 38 mm in diameter and up to 100 mm in depth.

  • Electrical installation, sanitary and heating installations
  • Civil engineering, industrialized building construction
  • Line lock out
  • safety Belt
  • Powerful motor
  • Superb service life
  • Powerful electromagnet
  • Epoxy sealed waterproof base
  • Internal spindle cooling system
  • Safety fuse protection for magnet
  • 100% high tensile alien headed
  • screws
  • Unmistaken arrangement of
  • switch for magnet &
  • drill to ensure safety of operator
  • Core Bits - Optional accessory as per your requirement.
  • Rated Voltage (V) : 220-240
  • Power Input (W) : 1200
  • Core Cutting Capacity (mm) : 12 to 38
  • Core Cutting Depth (mm) : 100
  • Rated Speed (RPM) : 250/450
  • Spindle connection (mm) : 19 Weldon
  • Weight (kg) : 18
  • Accessory Pouch
  • Allen Key 2.5 mm
  • Allen Key 3 mm
  • Allen Key 5 mm
  • Guide Pin6 mm
  • Guide Pin 8 mm
  • Fuse 8amp
  • Hex Spanner M5
  • SH Grub Screw m10x8
  • Belt SA
  • Drift
  • Coolant Bottle
  • Cutting oil bottle
  • Hand Gloves Set
  • Safety Goggle
  • Service Sheet
  • User Manual
  • Metal Carry Case
