Products

Wall Chaser

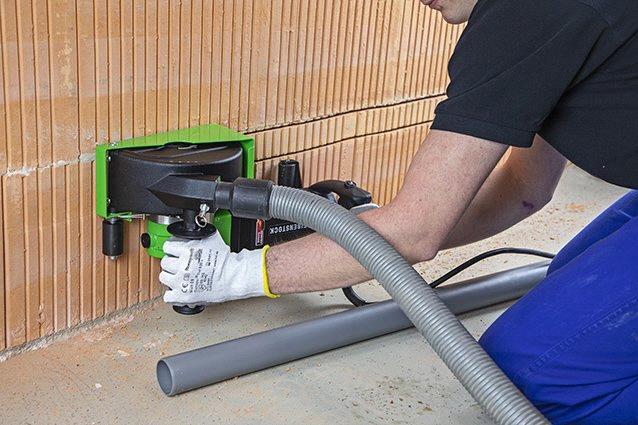

EMF 180.2

The strong wall chaser up to 60 mm milling depth

Milling of slots and large-dimensioned ducts in concrete, sand-lime brick, brickwork
Electrical installations, sanitary, heating and ventilation construction

Powerful 2,300 W motor
Almost dust-free immersion and slitting thanks to the new folding hood
Splitted work spindle - possibility of installing joint milling discs up to 10mm segment thickness
Electronic - soft start, temperature and over current cut-off, optical overload indication
Parallel handle position - comfortable working position
Locking for suction hose - avoids unintentional loosening of the hose during milling
Adjustable milling depth - without the need for a tool
Spindle lock - easy blade change
Slim design, small distance between dust hood and diamond blades for working up to 15 mm from the edge

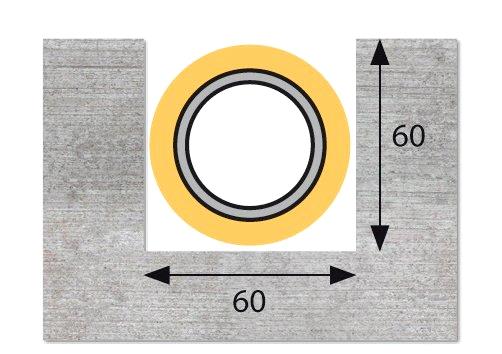

Slot width of 7-60 mm
Closed hood - optimal air flow, easy removal of fragments
Machine works in cutting direction - allows a comfortable handling

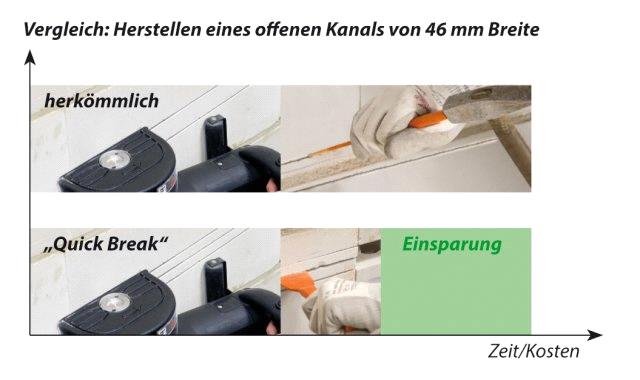

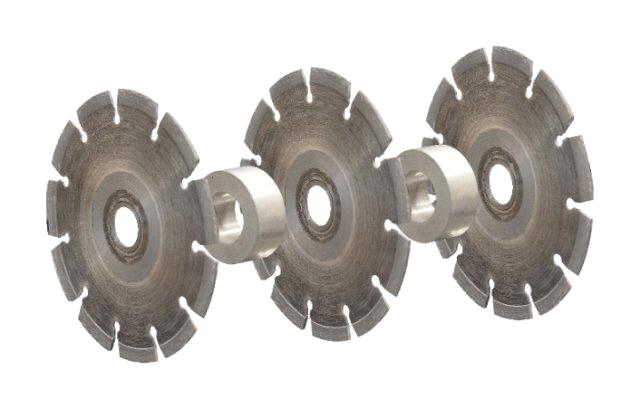

EIBENSTOCK "Easy Break Out" - Fast breaking by a center slot - Distance disks for the using of 3 blades (accessory)
Nozzle diameter Ø 35 mm - connection to the DSS industrial vacuum cleaner series

Rated Voltage (V) : 230
Power Input (W) : 2,300
Max. Slot Depth (mm) : 60
Max. Slot Width (mm) : 60
Disc Diameter (mm) : 180
Spindle Connection (mm) : Ø 22.2
Rated Speed (rpm) : 2,200
No-load Speed (rpm) : 3,100
Weight (kg): 8.2

Two Diamond Blades Premium (Concrete)
Assembly Tools
User Manual
