Magnetic Core Drilling Machine

WBM 40

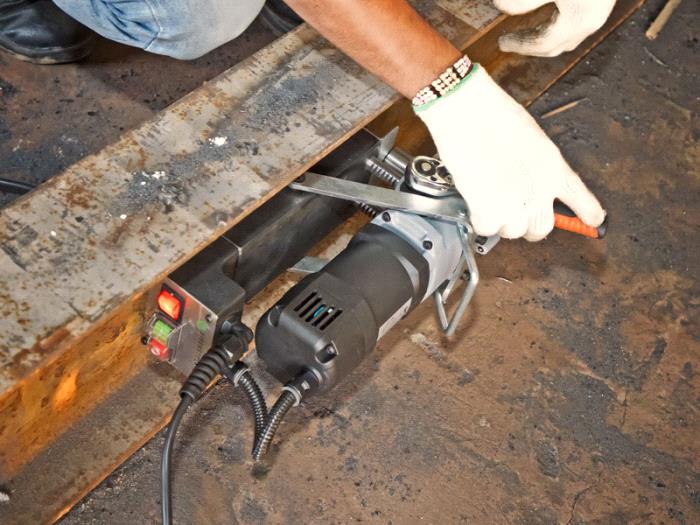

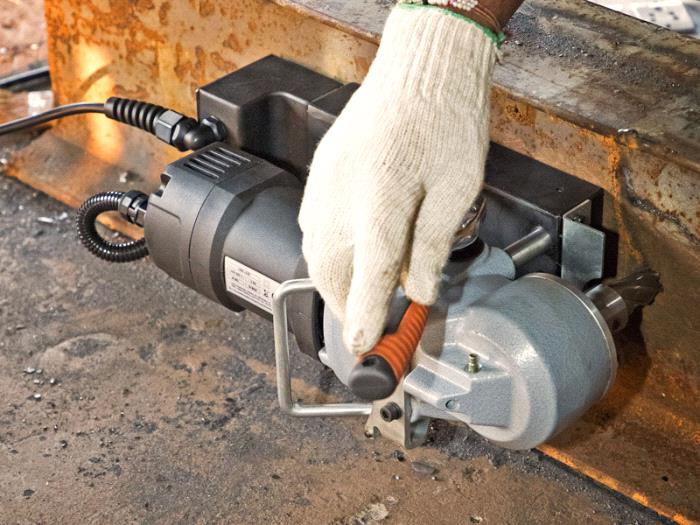

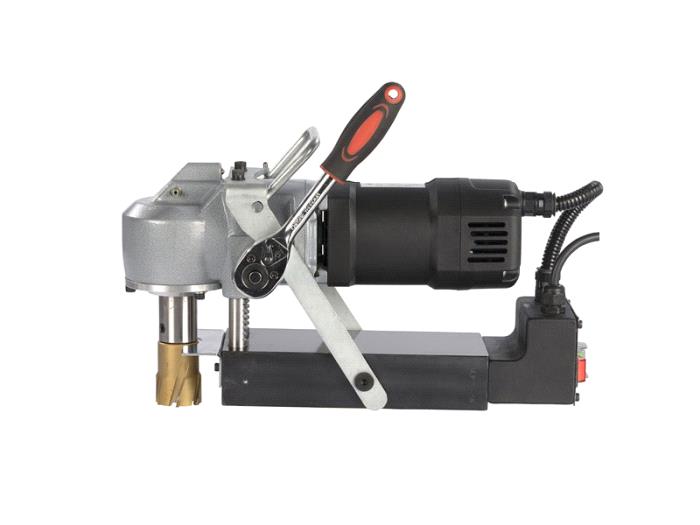

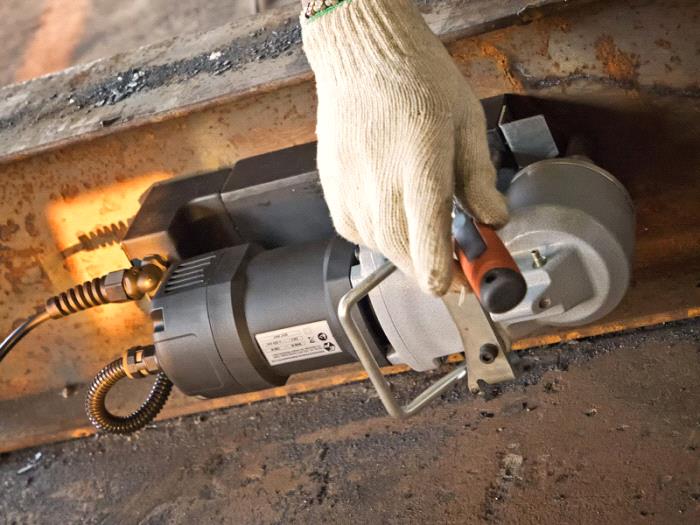

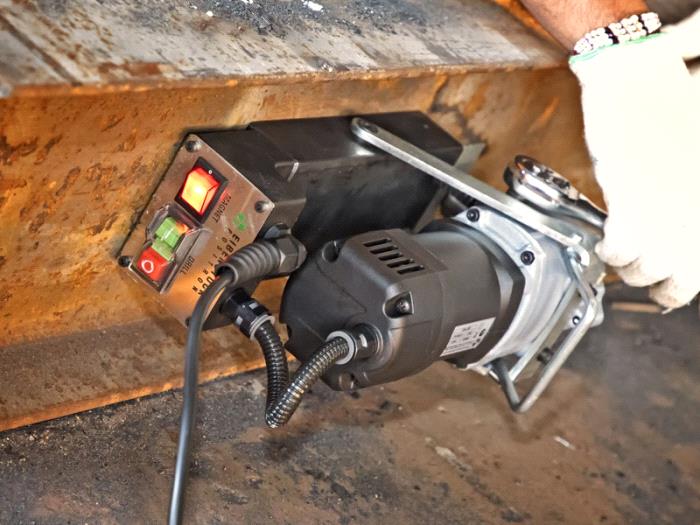

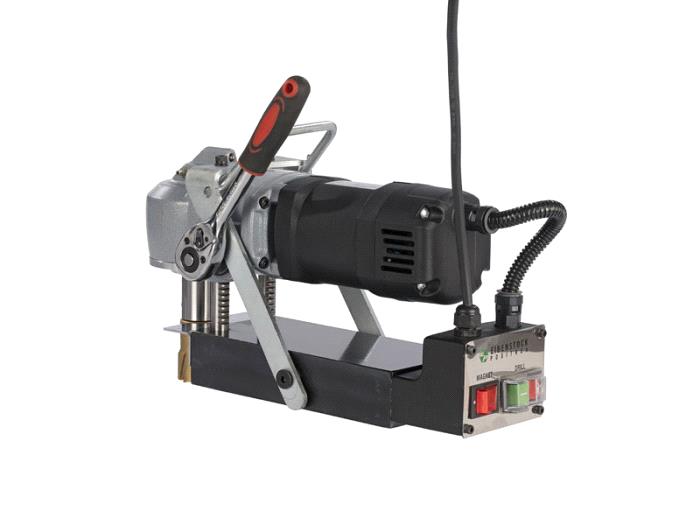

This low body Magnetic core drill makes drilling in tight spaces look simple. Weighing in at just 12 kg it delivers power of 1300 Watt capable of drilling from 12 mm -40 mm with total height of 190 mm giving access to the user in H-beam profiles and other structural spaces.

  • Electrical installation, sanitary and heating installations
  • Civil engineering, industrialised building construction & Heavy fabrication
  • Easy feed lever change
  • Line lockout
  • Safety Belt
  • Powerful motor
  • Superb service life
  • Powerful electromagnet
  • Internal cable arrangement
  • Epoxy sealed waterproof base
  • Internal spindle cooling system
  • 100% high tensile alien headed screws
  • Un-mistaken arrangement of switch for magnet & drill to ensure safety of operator
  • Pipe Clamping Attachment & Core Bits are Optional accessory as per your requirement
  • Rated Voltage (V) : 220-240
  • Power Input (W) : 1300
  • Max Core cutting capacity (mm) : 12 - 40
  • Max Core cutting Depth (mm) : 25
  • Rated Speed (RPM) : 320
  • Weight (kg) : 12.1
  • Accesory Pouch
  • Allen Key 3 MM
  • Allen Key 4 MM
  • Allen Key 5 MM
  • Guide pin 6 x 90 mm L
  • Guide pin 8 x 90 mm L
  • 3/8" Ratchet
  • SH Grub Screw M 8X8
  • Service Sheet
  • Coolant Bottle
  • Cutting oil bottle
  • BeltĀ  SA
  • Safety Goggles
  • Hand Gloves Set
  • Service Sheet
  • User Manual
  • Metal Carry Case
